Main Parameters of DSP500-60A DC Power Supply
● Wide range of AC input voltage.
● the current limit of module DC output and feedback feature of built-in short circuit allow long-term short circuit or short circuit starting (current limit).
● Output voltage and current start adjustments from zero, the current of maximum 60A. has automatic current limiting.
● protection method: protection functions of over-voltage, over-current, overload, phase loss, etc.
● Have automatic conversion function of steady voltage and current.
● Operation method: long-term continuous full-load operation
Input voltage |
AC 380V ± 10% 50Hz ± 10%
|
|
Output voltage
|
DC steady voltage and current
The maximum output voltage and current values: DC500V60A
Continuously adjustable from 0 to 500V
|
|
Efficiency
|
> 90% of full load
|
|
Output current
|
0-60A
|
|
Source effect
|
(Source voltage change by ± 10%): ≤ 0.1% rating
|
|
Load effect
|
Output current change from zero to rating): ≤ 0.1% rating
|
|
Ripple rms
|
≤ 0.4% rating+10 mV
|
|
Power factor
|
0.90 of full load
|
|
Constant voltage accuracy
|
Source effect (source voltage change by ± 10%): ≤ 0.2% rating, drift ( when continuous working time is more than 8 hours): ≤ 0.3% rating
Temperature drift (change rate caused by the temperature change in the temperature range): ≤ 0.04% rated / ℃ load effect (when output current changes from zero to rated value): ≤ 0.2% rating
|
|
Constant current accuracy
|
Source effect (when source voltage changes by ± 10%): ≤ 0.2% rating
Time drift (when continuous working time is more than 8 hours):≤ 1% rating
Temperature drift (change rate caused by the temperature change in the temperature range): ≤ 0.04% rating / ℃ load effect (when output current changes from zero to rated value): ≤ 0.2% rating
|
|
Output voltage and current setting
|
Multi-turn potentiometer
|
|
Soft launch time
|
＞3S
|
|
Display accuracy
|
LED digital display accuracy 0.1V; 0.1A
|
|
Protection method
|
Automatically cut off the output when overvoltage, overcurrent, overheating and phase lacking occur.
|
|
Operation method
|
Long-term continuous full-load operation
|
|
Insulation strength
|
＞200MΩ
|
|
Cooling type
|
Forced air cooling
|
|
Volume (reference value)
|
670 height * 390 width * 670 depth mm
|
|
Weight (reference value)
|
80Kg
|
500V60A hardware configuration list:
| Name |
Specification / Model
|
Quantity
|
Remark
|
|

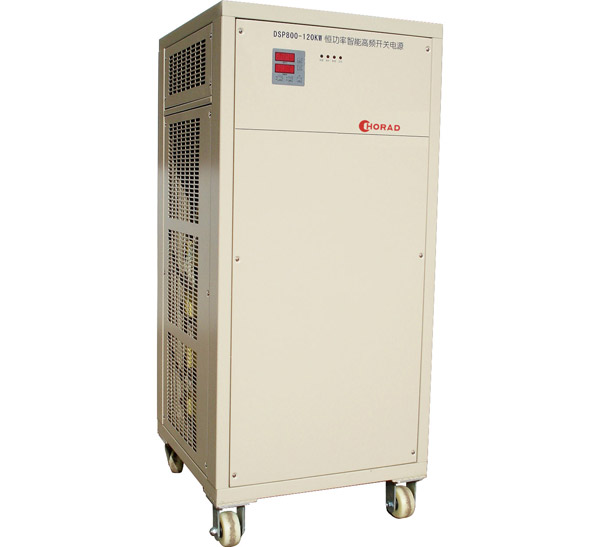

Cabinet (with casters)
|
390(W)×670(H)×660(D)
|
1
|
Domestic
|
|
High-frequency transformer / Magnets
|
E110 Ferrite
|
3
|
Import
|
|
Filter inductance / Magnets
|
E110 Ferrite
|
3
|
Import
|
|
Power factor inductance
|
|
1
|
Taiwan Zhuanshun(Suzhou)
|
|
Three-phase rectifier bridge
|
100A/800V
|
2
|
Japan
|
|
IGBT
|
200A
|
2
|
Fuji or OPK
|
|
IGBT driver
|
M57962
|
4
|
Mitsubishi
|
|
Electrolytic capacitor
|
400V4700UF
|
4
|
Hitachi, KingBox or Ruby
|
|
Master control board
|
Self-made
|
1
|
HORAD
|
|
Cooling fan
|
24VDC/1.1A
|
4
|
Mexico
|
|
High-speed rectifier
|
|
4
|
Germany or South Korea
|
|
Panel indication gauge
|
Three and half bit digital gauge
|
2
|
Domestic
|
|
Multi-turn potentiometer
|
5K (10 laps)
|
4
|
USA
|
