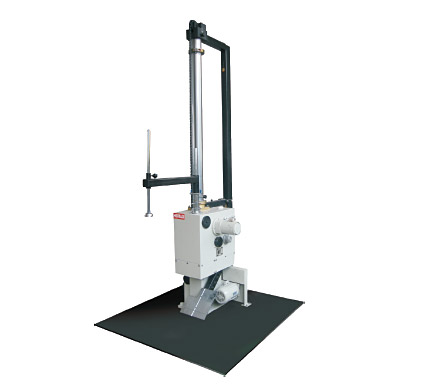

Drop test machine
This testing platform is mainly used for checking the influence of falling impact on packages during actual transportation and loading and unloading, and for estimating the strength of impact-resistance during transportation and the rationality of packing design of packages. Features of equipment: this product is of advanced structure. Because of the release of stored energy during falling, the bracket of the goods moves downward before the packages with acceleration > 5g, which ensures clear separation of the bracket and packages that fall free with low minimum falling height, small shock vibration, and it is stable and reliable.
■ being safe and reliable with limitation of up and down displacement
■ With adjustable height for hoist, it satisfies different demands of the clients;
■ adoption of double-rail orientation for platform of falling test with stable and reliable hoist;
■ Clamping test of different directions by edge, surface and angle of the test products by using platform of falling test;
■ upon installing, the clients only need to lie the machine on flat marble or cement floor without special foundation.
| Type |
HD-315
|
HD-320
|
|
Falling way
|
Air arm type falling
|
Air arm type falling
|
|
Floor Size
|
150*156
|
150*156
|
|
Test height
|
35～150
|
35～200
|
|
Rocker size
|
W29×L50
|
|
Maximum load
|
60Kg
|
60Kg
|
|
Buffer
|
Oil pressure buffer
|
|
Height control mode
|
By wire
|
By wire
|
|
External dimensions
|
85*156*225
|
85*156*295
|
|
Machine table weight
|
350Kg
|
450Kg
|
|
Electrical requirements
|
220V/60Hz
|
220V/60Hz
|
|
Pressure requirements
|
6Kg/cm
|
6Kg/cm
|
|
Test mode
|
Surface, corner, edge
|
Surface, corner, edge
|
| specification |
model |
HT-7003
|
|
Height range
|
40-150CM
|
|
Single wing area（W×D）
|
30×75CM
|
|
Base plate (W × D)
|
120×140CM
|
|
Test space (W × D × H)
|
87×74×40～160CM
|
|
Test mode
|
Surface, corner, edge
|
|
Bear weight
|
About 60Kg
|
|
Height adjustment
|
Motor rotary
|
|
Horsepower
|
1/3HP
|
|
Main engine
|
120×140×210
|
|
Control box
|
φ03， H110CM
|
|
Weight
|
400Kg
|
|
Power supply
|
1φ，AC220V 50Hz
|
●Electronics, electrotechnics, chemical industry, coating, plastics, aerospace, war industry, scientific research;
●Photonics, electronic communications, semiconductor, electrical machinery and appliances, aerospace industry and other fields
Download：
Operation Instruction in Chinese
Operation Instruction in English
Maintenance Instruction of Equipment
