■ Forced air cooling
■ Range of sine exciting force: 1kN～70kN
■ Random and sine exciting force- 1:1
■ Double sine impact
■ Peak value of displacement-25mm, 40mm or 51mm
■ Light armature, optimized design and strong resistance of vibration
■ Effective vibration insulation of trunnion airbag
■ High bearing capacity of the central airbag with performance at low frequency
■ Double magnetic track design with low leakage of magnetism and even intensity of magnetic field
■ Horizontal slide platform can be furnished
■ Test items of sine, random and impact, etc.
■ Effective cooling of blower with little noise
■ Amplifier of high efficiency and high reliability
|

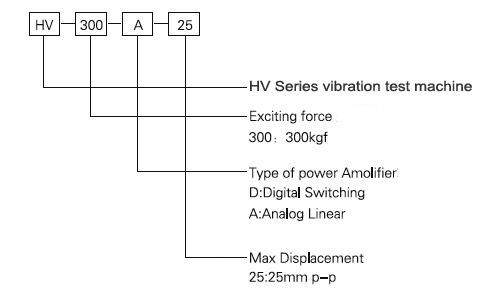

Type
|
Excitation force
|
Frequency range
|
Moving coil weight
(Mo)
|
Maximum acceleration
（a）
|
Maximum displacement
（D）
|
Maximum speed
（V）
|
Maximum load
|
Operation platform size
|
|
Maximum sine
Excitation force N
|
Random excitation
Nrms
|
Hz
|
kg
|
G
|
Mmp-p
|
cm/s
|
kg
|
mm
|
|
HV-100-A-25
|
980
|
784
|
5～4500
|
2.0
|
50
|
25
|
175
|
70
|
∫110
|
|
HV-150-A-25
|
1470
|
1176
|
5～4500
|
2.0
|
75
|
25
|
115
|
70
|
∫110
|
|
HV-200-A-25
|
1960
|
1560
|
5～4500
|
2.0
|
100
|
25
|
175
|
70
|
∫110
|
|
HV-300-D-25
|
2940
|
2352
|
5～4000
|
2.8
|
100
|
25
|
110/170
|
120
|
∫150
|
|
HV-600-D-25
|
5880
|
4704
|
5～3000
|
5.8
|
100
|
25
|
80/140
|
200
|
∫200
|
|
HV-1000-D-25
|
9800
|
7840
|
5～3000
|
8.5
|
120
|
25
|
140
|
117
|
∫200
|
Vertical extension table
| Type |
Table size
|
Table weight
|
Frequency upper limit
|
|
Magnesium alloy Aluminum alloy
|
|
HVT-0303
|
315×315×30
|
5.8
|
8.5
|
1000
|
|
HVT-0404
|
400×400×30
|
9
|
13
|
600
|
|
HVT-0505
|
500×500×40
|
10.4
|
15
|
500
|
|
HVT-0606
|
630×630×45
|
12.5
|
19
|
360
|
|
HVT-0808
|
800×800×70
|
30
|
45
|
350
|
|
HVT-1010
|
1000×1000×110
|
78
|
110
|
350
|
|
HVT-1515
|
1500×1500×200
|
200
|
300
|
200
|
|
HVT-300
|
￠300
|
2.5
|
3.7
|
2000
|
|
HVT-500
|
￠500
|
6.5
|
8.3
|
1500
|
Large displacement specification
HV-200-A-40 |
1960
|
1568
|
2～2000
|
8.0
|
25
|
40
|
70
|
130
|
∫224
|
|
HV-300-D-40
|
2940
|
2352
|
2～2000
|
8.0
|
37
|
40
|
100
|
130
|
∫224
|
|
HV-600-D-51
|
5880
|
4704
|
2～2000
|
12.0
|
50
|
51
|
100
|
300
|
∫230
|
|
HV-1000-D-51
|
9800
|
7840
|
5～3000
|
9.5
|
104
|
51
|
140
|
140
|
∫200
|
|
HV-1500-D-51
|
14700
|
11760
|
5～3000
|
18.0
|
80
|
51
|
185
|
300
|
∫280
|
|
HV-2000-D-51
|
19600
|
19600
|
5～3000
|
18.0
|
100
|
51
|
185
|
300
|
∫280
|
|
HV-3000-D-51
|
29400
|
29400
|
5～2500
|
25.0
|
100
|
51
|
150
|
500
|
∫320
|
|
HV-3600-D-51
|
35000
|
35000
|
5～2500
|
35.0
|
100
|
51
|
180
|
500
|
∫440
|
|
HV-4500-D-51
|
44000
|
44000
|
5～2200
|
50.0
|
90
|
51
|
180
|
800
|
∫440
|
|
HV-5000-D-51
|
49000
|
49000
|
5～2200
|
52.0
|
100
|
51
|
180
|
1000
|
∫440
|
Horizontal sliding terrace
| Type |
Table size
|
Moving component weight(kg)
|
Frequency upper limit
|
|
HVT-0303
|
300×300
|
8.5
|
1000
|
|
HVT-0404
|
400×400
|
14.5
|
1500
|
|
HVT-0505
|
500×500
|
25
|
1000
|
|
HVT-0606
|
600×6000
|
65
|
2000
|
|
HVT-0808
|
800×8000
|
103
|
1500
|
|
HVT-1010
|
1000×1000
|
155
|
1500
|
|
HVT-1212
|
1200×1200
|
202
|
1200
|
|
HVT-1515
|
1500×1500
|
315
|
1000
|
Calculation for selection of vibration test systems and related factors:
The existing conditions for the experiment must be given for the selection of vibration test system, calculation of parameters such as maximum exciting force, maximum displacement, maximum acceleration and highest frequency must be performed according to the formulas and evaluation implemented of the selected type. The key factors for type selection are as follows:
＊Calculation of sine exciting force:
F=（Mo+Mt+ML）a F=（Mo+Mt+ML）a
F：Exciting Force N（kgf）
F：Exciting Force N（kgf）
Mo:Weight of Armature kg
Mo:Weight of Armature kg
Weight of platform and clamping apparatus kg
ML:Weight of specimen kg
ML:Weight of specimen kg
A: Acceleration G（m/s2）
A: Acceleration G（m/s2）
（G=9.8 m/s2）
（G=9.8 m/s2）
If clamping apparatus is used for installation of specimen, weight and co-vibration frequency of the clamping apparatus should also be taken into consideration)
＊The relationship between frequency, displacement and acceleration:
A=【（2πf）2/1000】D[m/sec2] A:Acceleration m/sec2
A=【（2πf）2/1000】D[m/sec2] A: Acceleration m/sec2
V=【（2πf）/1000】D[m/sec] D: Displacement mm
V=【（2πf）/1000】D[m/sec] D: Displacement single peak value mm
F:Frequency Hz
F: Frequency Hz
By means of the above formulas, the maximum displacement and acceleration can be obtained through the calculation of key factors.
＊ The size of the platform extension should be determined according to the dimensions of package, and the strength of the platform should be able to satisfy the requirements of maximum frequency.
- The calculation of the random exciting force of vibration should be made according to the root-mean-square of Acceleration:
Fref=(（Mo+Mt+ML）aref Fref:Random force kgf
Fref=(（Mo+Mt+ML）aref Fref:Random force kgf
Aerf: root-mean-square acceleration
＊ Basic System Model NO Model Description- Basic System Model NO
Vibration Controller (SUPER-2, ECON, USA)
1.Performance of System
SUPEP-2 vibration controller is a high-performance vibration controller based on double-variation DSP architecture with control software running under Windows 2000/XP, its rational distribution and low noise design technology ensuring high range of dynamic control and control precision. There will be automatic generation of experiment report in Word form, display and storage of signals and data, setting experiment parameters and controlling target spectrum, for controlling the running process of the test in the form of calculation form and flow chart.
＊Input
Number of access: two synchronous input access
Range of voltage: ±10V of peak voltage
Resolution: 24-digit digital analog conversion (ADC)
Wave filtering: separate analog and digital anti-aliasing filter at each access
Dynamic range: 120dB
Rectification of signals: voltage, built-in ICP constant current source and charge amplifier
Signal / noise ratio: > 110dB
＊Output
Number of access: one
Resolution: 24-digit digital analog conversion (DAC)
Wave filtering: elimination of non-linear phase change and imaging of separate analog and digital wave filters at each access
Dynamic range: >110dB
2. Sine Performance Index
＊Control Parameter
Frequency: 1Hz～5000Hz
Operating modes: manual and automatic
Sweep rate: linear sweep: 0 ~ 6000Hz/min;
Logarithmic sweep: 0 ~ 100 Octaves / min,
Fixed bandwidth: (a bandwidth of 1 ~ 500Hz)
* Control performance
Dynamic range: 95dB
* Drive signal
Providing sine sweep signal of analog quality
Waveform distortion: <0.3%
Signal / noise ratio: > 110dB
* Presence of parameter
Frequency: Set the frequency of presence
Duration: cycle times and time
* Target spectrum- Reference Profile
Resolution: 2048 points (maximum)
Crossover point: definition in the order of magnitude or slope with the number of crossover points unrestricted
Validity check- automatic check of the validity of the defined crossover point
Engineering Units: British and Metric
3. Random Performance Index (OPTION)
＊ Parameters of Control
Range of Frequency: from 0 to 36.5, 75, 150, 300, 600, 1,200, 2,400 Hz, 4,800Hz
Resolution: 100, 200, 400, 800, 1,600 spectral line
Control strategy: single-channel control
* Control performance
Dynamic range: 85dB
Control accuracy: ± 1dB
* Target spectrum
Crossover point: definition in the order of magnitude or slope with the number of crossover points unrestricted
Validity check- automatic check of the validity of the defined crossover point
Tolerance limit RMS: automatic calculation based on tolerance spectrum, or manually setting by the user
Engineering Units: British and Metric
* Drive signal
Continuous Gaussian random signal
Typical performance index of impact
＊Control Parameter
Range of Frequency: 0 ~ 21,000 Hz
Delay of pulse: 0 ~ 1,000s
Average: 1 ~ 500
* Target waveform
Type of Pulse: Half Sine, bell-shaped wave, front sawtooth wave, back sawtooth wave, triangle, rectangle, trapezoid
Display: Auto display of acceleration, velocity and displacement waveforms and limit of vibration table
＊Trial Run
Modes of Operation: manual and automatic
4. Typical impact control
Typical impact control- closed-loop control of transient waveforms, all input channels synchronized.
Type of Pulse: Half Sine, bell-shaped wave, front sawtooth wave, back sawtooth wave, triangle, rectangle, trapezoid
Time of Pulsation: 0.5～3000ms
Range of Frequency: 0 ~ 21,000 Hz
Size of frame: 128 to 8192 points, or automatic optimization
Compensation: compensation of front and back pulse, and compensation of back pulse
