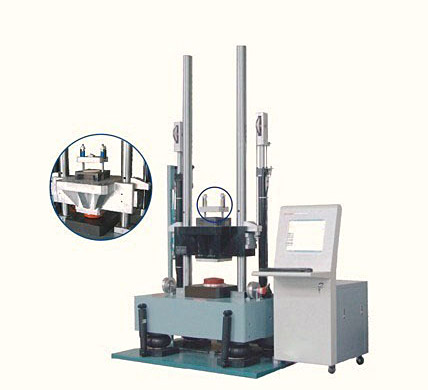

HS series high acceleration shock testing machine
Hs series shock testing machine of high acceleration is mainly used for testing the impact-resistance performance of the products of aviation, aerospace, automotive, electronics and other fields, suitable for testing parts and complete sets of machines with heavier weight, larger size, greater acceleration demand of test impact. Such impact is intended for the testing of products that require higher intensity of overall counter-impact performance.
■Adoption of double-column orientation, mechanical hoist and automatic control of height of elevation
■With the automatic locking function by means of on-platform second rebound
■Large platform size and high momentum of impact
■Impact gauge for the measurement and display of the acceleration of impact, variation of the impact velocity during the pulsation
■In compliance with the requirement on shock wave such as IEC, MIL, GJB and other international and national standards
Specification / Model |
HS-100 |
HS-200 |
HS-300 |
Maximum test load (kg) |
100 |
200 |
300 |
Pulse repetition frequency (times / min) |
/ |
/ |
/ |
Pulse duration (ms) |
3～20 |
3～20 |
3～20 |
Pulse peak acceleration (m/s2) |
100～2000 |
100～2000 |
100～2000 |
Pulse waveform |
Half-sine |
Half-sine |
Half-sine |
Operation table size (mm) |
600×700 |
800×1000 |
800×1000 |
Table body weight(kg) |
1000 |
3400 |
3400 |
Table size(L×H×W)(mm) |
1245×2400×700 |
2160×3050×1300 |
2160×3050×1300 |
Electronic instrument model |
HSC-100 |
HSS-200 |
HSC-300 |
Supply voltage (V/50Hz) AC |
380±10% |
380±10% |
380±10% |
Electronic instrument weight (kg) |
40 |
40 |
40 |
Electronic instrument dimension (L × H × W) (mm) |
500×1750×800 |
800×1650×550 |
800×1650×550 |
Power consumption (KVA) |
0.5 |
1 |
1 |
Impact meter (optional) |
HC-1orHC-1A |
●Electronics, electrotechnics, chemical industry, coating, plastics, aerospace, war industry, scientific research;
●Photonics, electronic communications, semiconductor, electrical machinery and appliances, aerospace industry and other fields
Download：
Operation Instruction in Chinese
Operation Instruction in English
Maintenance Instruction of Equipment
