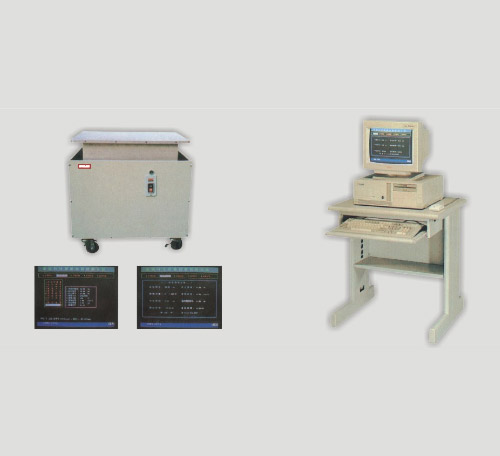

Mechanical Vibration Machine
Mechanical vibration machine is applicable to test of simulating transportation of toys, electronics, furniture, gifts, ceramics, packaging and other products, in compliance with American and European transport at standards and International transport standards such as EN, ANSI, UL, ASTM, ISTA.
■Uniform vibration of the platform with small lateral movement
■With amplitude prediction function and adjustable amplitude
■Simultaneous and immediate display of amplitude, acceleration, frequency and times of vibration and testing time
■Revising the factors of the weight of specimen at high testing accuracy
■Amplitude adjustable with large range of adjustment
■No shocking for the machine with low noise during running
■Satisfying the adjustment of amplitude of the machine of ergonomics
■With multiple testing functions such as fixed frequency, sweep frequency and multi-stage random
■Remembering testing parameters of unlimited groups with function of printing the test report
| Type |
VS-5060M |
VS-5060L |
Frequency range |
5-100Hz |
5-60Hz |
Frequency accuracy |
±0.05Hz |
±0.05Hz |
Acceleration range |
0-11G(peak) |
0-11G(peak) |
Maximum load |
200kgw |
150kgw |
Test mode |
Fixed Frequency,Sweep
Frequency,Multi-random |
Fixed Frequency,Sweep
Frequency,Multi-random |
Amplitude range |
0-2.8mm(p-p)adjustable |
One point within 0-2.8mm(p-p)
(Please specify) or
1.5mmp-p fixed |
Table size |
500(W)X600(L)mm |
500(W)X600(L)mm |
Test program |
No Limit |
No Limit |
Test time |
No Limit |
No Limit |
Control type |
Close Loop |
Open Loop |
Power supply |
AC 200V 60/50Hz 1 phase 5A |
AC 200V 60/50Hz 1 phase 5A |
Dimensions W × D × Hmm
Weight |
625(W)X525(D)X690(H)
200kgw |
625(W)X525(D)X690(H)
200kgw |
●Electronics, electrotechnics, chemical industry, coating, plastics, aerospace, war industry, scientific research;
●Photonics, electronic communications, semiconductor, electrical machinery and appliances, aerospace industry and other fields
