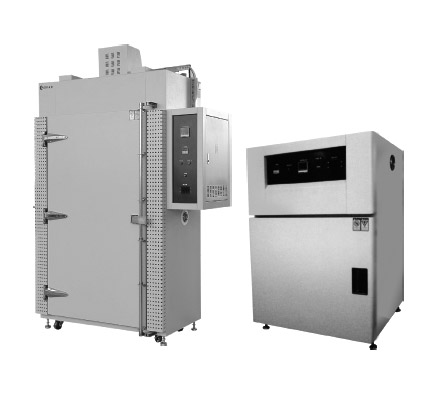

High-temperature tester
This equipment is mainly used to test the performance of the products stored, transported and applied in high temperature environment and test the physical and other performance of electrical and electronic products, components, parts, metallic materials and the performance of them under simulated high temperature environment, determining whether the performance of the products meet the requirements or not after performance test for design, improvement, test and factory inspection of the products.
■Designed and manufactured with imported components of high quality
■Even distribution of wind through perforated panel, ensuring even temperature at any corner of the chamber
■Powerful wind supply by centrifugal blower
| Type |
H-VA-200N
H-VA-200M |
H-VA-290N
H-VA-290M |
H-VA-1000N
H-VA-1000M |
| Temperature range |
H-VA-N：（RT+20）℃～200℃ |
| H-VA-M：（RT+20）℃～300℃ |
Temperature rise time
(no load) |
H-VA-200N：（RT+20）℃→200℃≦50min
H-VA-290N：（RT+20）℃→200℃≦50min
H-VA-1000N：（RT+20）℃→200℃≦50min |
H-VA-200M：（RT+20）℃→300℃≦85min
H-VA-290M：（RT+20）℃→300℃≦85min
H-VA-1000M：（RT+20）℃→300℃≦85min |
| Nominal internal volume |
200L |
290L |
1000L |
| Internal box size (W × H × D) mm |
600×650×500 |
600×950×500 |
1400×1200×600 |
| External box size (W × H × D) mm |
900×1310×640 |
900×1600×640 |
1740×1900×780 |

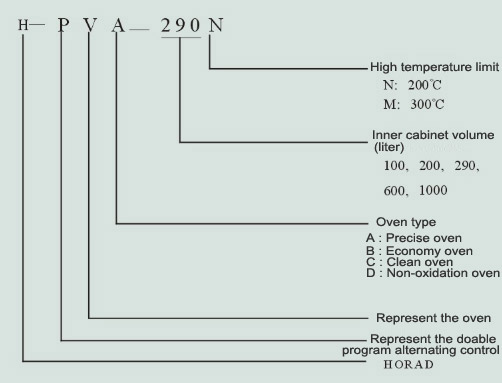

| Model preparation instruction |
; |
| Weight(kg) |
190 |
250 |
700 |
| Power capacity(kw) |
H-VA-200N：2.7
H-VA-200M：3.7 |
H-VA-290N：3.9
H-VA-290M：4.9 |
H-VA-1000N：12.9
H-VA-1000M：13.9 |
| Power supply |
AC380V 3φ 50Hz |
●Aviation, aerospace, military, electronics, telecommunications, automobile, electrical equipment, petroleum, chemical industry;
●Medicine, pharmacy, machinery, university, research institute and other fields;
