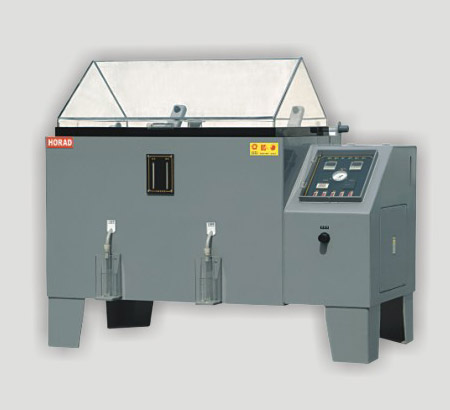

Salt mist tester
Salt spray erosion test chamber, for conducting erosion test for components, devices, randomly sampled products and finished products. The suppliers of auto industry and other industries must test the anti-corrosive quality of products to ensure their validity. In order to meet the requirements of the contract, security requirements of consumers, common standards and military specifications, and to confirm the value and efficiency of the products, the government and consumer groups will also conduct corrosive test. Corrosive test is usually conducted under the worst possible corrosive environment, so as to provide data of the possibility of material degradation for assessment under real environment. The simulation of dolphin cyclic states under various conditions is possible with the corrosive test chamber manufactured by Hongruida Company. In the light of different test methods, the various corrosive test chambers provided by Horad Company allow for accurate and repetitive tests.
■ the salt spray corrosive test chambers can be widely applied, making possible quick test of anti-corrosion quality of materials. The salt spray corrosive test chambers are designed and manufactured according to the Standards of ASTM B 117. Meanwhile, it can be applied in traditional salt spray and humidity test.
■ The test chamber is waist high at the same cost.
■ Double-layer steel structure and transparent casing
■ Software package for accurate control, 55-gallon trough
■ Plexiglas observation window, safety bolt on the observatory door
■ PVC bushel of uniform thickness, with chamber bottom convenient for the hoisting of drainage
■ Rubber or plastic pad at the bottom of the chamber, with Plexiglas terminal
■ Switch for the light inside the chamber is on the external wall, with tilted chamber top so as to avoid condensed water drops falling onto the samples
|
Type
|
H-SST-60
|
H-SST-90
|
|
Internal box size
W×H×Dcm
|
60×40×45
|
90×50×60
|
|
External box size
W×H×Dcm
|
108×112×67
|
143×128×78
|
|
Temperature range
|
RT+10℃～50℃±0.5℃
|
|
RT+10℃～63℃±0.5℃
|
|
Power supply
|
AC220V 50Hz
|
|
Standard
|
- ABNT NBR 8094 8095
- ASTM B117 B368 B380 D1735 D2247
- DIN 50021
- Ford BI-103-01
- GM 4465P 4298P
- ISO 7253 9227 11997
- JIS Z2371
- TIA/EIA 455-16A
- CASS acetic acid falling stone out Corrodcote
- others water fog
|
●daily articles, the automobiles, electronics/ wireless telecommunications, aeronautics, navigaion
●steel structure, building materials, aircrafts, buttons, ordnance and transportation, etc.
Download：
Operation Instruction in Chinese
Operation Instruction in English
Maintenance Instruction of Equipment
