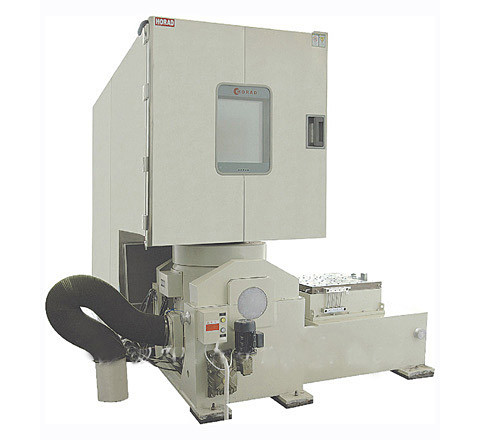

Temperature, humidity and vibration combined environment tester

   AGREE, a complex environmental testing machine, can simulate change and damage to the products of the three physical quantities (temperature, humidity and vibration) in the natural environment, used to evaluate the reliability and adaptability to the environment of the products, and therefore, change of temperature and humidity and random vibration can be at the same time, and the limit point and defect of the products can be found out.
  • Features
  • Specifications
  • Control System
  • Application Range
  • Download

■Equipment available for testing of high-tech products in aerospace, military, vehicles and electronics

■Combined thermostatic and controlled humidity chamber makes your test of quality and reliability closer to the trial in the real environment

■Test of temperature, humidity and vibration for simulatable products in real environment

■Available for either compound or separate test of temperature, humidity and vibration

■Advanced color LCD micro computer control system with OSD in Chinese and English

■Capability for control system of vibration testing machine: linear, logarithm and multi-frequency scan

■VTH test process is closer to simulation in real environment

■Control of random/ sine/ linear vibrating machine

■Thrust of 100㎏f~5000㎏f vibrating machine

■Control of optimal refrigerant of German/ Japanese Server Valve

■Power-saving of 30%, water-saving of 20%, HFC environmental-friendly refrigerant

■Automatic servo control and adjustment of refrigerant flow by heat load

■Efficiency of effective control range of low humidity:15%RH

■Dew condensation lessened by synchronized slope control technology of temperature/ humidity

Equipment specifications :


Type

Temperature range

Humidity range

Internal box size

PTH-408CK
PTH-408EK

-40℃~+150℃
-70℃~+150℃

20%~95%

68×85×80cm

PTH-800CK
PTH-800EK

-40℃~+150℃
-70℃~+150℃

20%~95%

100×100×80cm

PTH-100CK
PTH-100EK

-40℃~+150℃
-70℃~+150℃

20%~95%

100×100×100cm


Specifications of HV Series vibration test machine




Type

Excitation force

Frequency range

Moving coil weight
(Mo)

Maximum acceleration
(a)

Maximum displacement
(D)

Maximum speed
(V)

Maximum load

Operation platform size

Maximum sine
Excitation force N


Random excitation
Nrms

Hz

kg

G

Mmp-p

cm/s

kg

mm

HV-100-A-25

980

784

5~4500

2.0

50

25

175

70

∫110

HV-150-A-25

1470

1176

5~4500

2.0

75

25

115

70

∫110

HV-200-A-25

1960

1560

5~4500

2.0

100

25

175

70

∫110

HV-300-D-25

2940

2352

5~4000

2.8

100

25

110/170

120

∫150

HV-600-D-25

5880

4704

5~3000

5.8

100

25

80/140

200

∫200

HV-1000-D-25

9800

7840

5~3000

8.5

120

25

140

117

∫200


 Vertical extension table
Type

Table size

Table weight

Frequency upper limit

Magnesium alloy Aluminum alloy

HVT-0303

315×315×30

5.8

8.5

1000

HVT-0404

400×400×30

9

13

600

HVT-0505

500×500×40

10.4

15

500

HVT-0606

630×630×45

12.5

19

360

HVT-0808

800×800×70

30

45

350

HVT-1010

1000×1000×110

78

110

350

HVT-1515

1500×1500×200

200

300

200

HVT-300

¢300

2.5

3.7

2000

HVT-500

¢500

6.5

8.3

1500

Large displacement specification

HV-200-A-40

1960

1568

2~2000

8.0

25

40

70

130

∫224

HV-300-D-40

2940

2352

2~2000

8.0

37

40

100

130

∫224

HV-600-D-51

5880

4704

2~2000

12.0

50

51

100

300

∫230

HV-1000-D-51

9800

7840

5~3000

9.5

104

51

140

140

∫200

HV-1500-D-51

14700

11760

5~3000

18.0

80

51

185

300

∫280

HV-2000-D-51

19600

19600

5~3000

18.0

100

51

185

300

∫280

HV-3000-D-51

29400

29400

5~2500

25.0

100

51

150

500

∫320

HV-3600-D-51

35000

35000

5~2500

35.0

100

51

180

500

∫440

HV-4500-D-51

44000

44000

5~2200

50.0

90

51

180

800

∫440

HV-5000-D-51

49000

49000

5~2200

52.0

100

51

180

1000

∫440





Product advantages

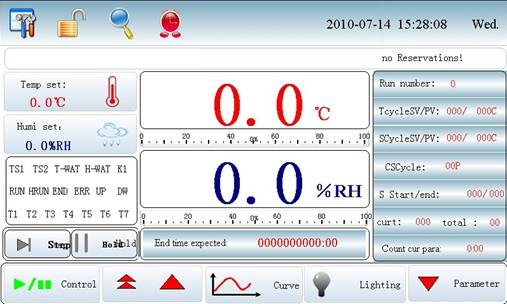

1. The controller operation uses the fuzzy algorithm, the latest technology control and proper adjustment of refrigeration to make the best results; 7 "TFT true color LCD touch screen is larger than the other screens.
2.The controller interface of humanization design has more convenient operation and more reliable operation.
3. The refrigeration control system adopts cooling demand algorithm to reasonably and effectively use cooling capacity and effectively reduce the mutual consumption of heat and cold so as to achieve control stability and energy saving
4.The coupling PID adopted by the temperature and humidity control can effectively prevent the sudden runaway of the controlled humidity value, which not only makes constant temperature and humidity but also achieves well the function of alternating temperature and humidity .
5.The refrigeration system adopts imported compressor which has the lower noise and better performance.
6. The sampling calculation for a second can ensure the real-time curve sampling and historical data storage for 110 days. The sampling rate can be arbitrarily set from 3 seconds to an hour.
7. Extra long constant time of 99999 hours
8. The program segment setting time of 540 hours and 59 minutes
9. There is the USB interface to connect computer and corporate LAN.








●Aviation, aerospace, military, electronics, telecommunications, automobile, electrical equipment, petroleum, chemical industry;
●chemical industry,Medicine, pharmacy, machinery, university, research institute and other fields;
