Mechanical impact and collision table

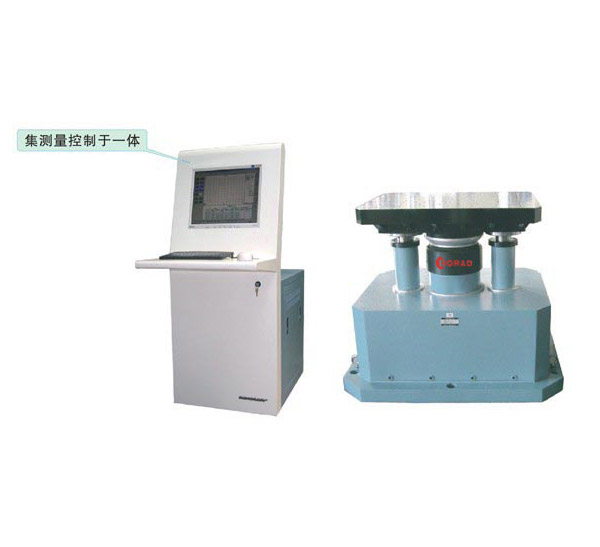

Integrated with measurement and control
Impact testing machine is used for measuring and determining the flexibility of the environment of repeated mechanical impact the products may bear during using or transportation and for the assessment of packaging protection. Data obtained from the test is used to reduce to the uttermost the damage of the products during transportation, meanwhile avoiding waster due to excessive packaging and reducing warranty costs.
■ automatic adjustment of falling height of impact testing machine, ensuring the repeatability of the impact;
■ Controlled by special controller with peak value of the acceleration that can be defaulted and adjusted automatically;
■ Range and times of impact defaulted, and automatically stopping the machine after finishing the test;
■ automatically measuring the acceleration of impact, duration of pulse, variables of impact velocity and normalization of impact signal, displaying the public band and moving the waveform, simultaneously displaying, printing and saving the real-time impact parameters, small-scale band and tolerance band of impact
■ Free choice of impact of low value or collision.
| Specification / Model |
HB-100 |
HB-250 |
HB-500 |
HSB-100 |
Maximum test load (kg) |
100 |
250 |
500 |
100 |
Pulse repetition frequency (times / min) |
0～100 |
20～80 |
20～80 |
0～80 |
Pulse duration (ms) |
6～16 |
6～18 |
6～18 |
6～18 |
Pulse peak acceleration (m/s2) |
50～400 |
50～400 |
50～400 |
50～1000 |
Pulse waveform |
Half-sine |
Half-sine |
Half-sine |
Half-sine |
Operation table size (mm) |
500×700 |
800×1000 |
800×1000 |
500×700 |
Table body weight(kg) |
about760 |
1600 |
1600 |
about1200 |
Table size(L×H×W)(mm) |
800×700×1000 |
1310×1040×1180 |
1310×1040×1180 |
700×900×1200 |
Electronic instrument model |
HBC-100 |
HBC-1 |
HBC-1 |
HSBC-100 |
Supply voltage (V/50Hz) AC |
220±10% |
380±10% |
380±10% |
220±10% |
Electronic instrument weight (kg) |
15 |
40 |
40 |
15 |
Electronic instrument dimension (L × H × W) (mm) |
500×280×400 |
500×1750×800 |
500×1750×800 |
500×280×400 |
Power consumption (KVA) |
1.3 |
7.5 |
7.5 |
1.3 |
Impact meter (optional) |
HC-1orHC-1A |
●Electronics, electrotechnics, chemical industry, coating, plastics, aerospace, war industry, scientific research;
●Photonics, electronic communications, semiconductor, electrical machinery and appliances, aerospace industry and other fields
Download：
Operation Instruction in Chinese
Operation Instruction in English
Maintenance Instruction of Equipment
